25hp 750cc Twin Cylinder ZONSEN Petrol Engine 7" Hydraulic Feeding Wood Chipper, DCH7

25hp 750cc Twin Cylinder ZONSEN Petrol Engine 7" Hydraulic Feeding Wood Chipper, DCH7

$1,700.00
$1,700.00
Sale Sold out

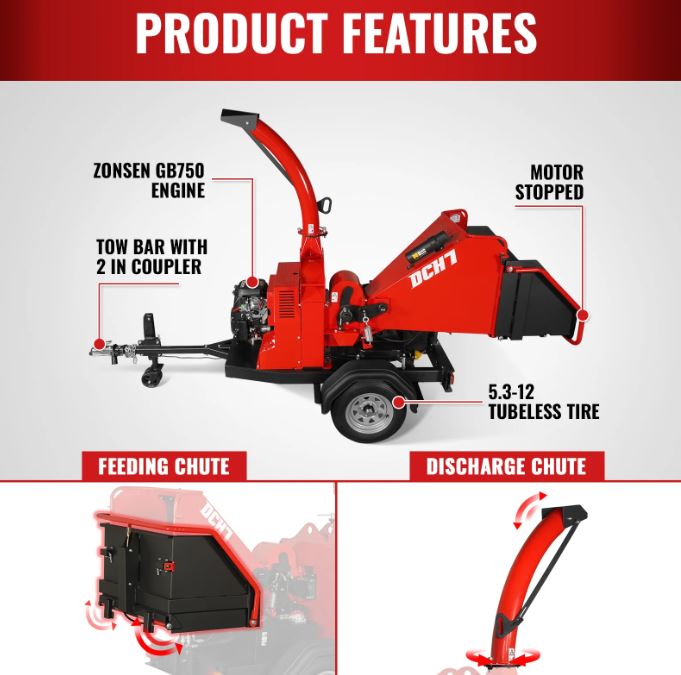

  • MechMaxx 7" Disc Brush Chipper, Highway Towable with torsion axles and Lights, Electric Start, Dual Variable Speed Hydraulic Infeed
  • This 7" chipper can stand up to commercial use. Great for Landscapers, Small Tree Service Jobs, Homeowners, Orchards, Rental Yards.
  • Gasoline/Petrol: Clean, fresh, unleaded gasoline
  • Applicable hydraulic oil type: ISO VG 46 hydraulic oil.
  • Engine oil type: 10W-30
  • *Shipped with NO fluids. Must add own fluid

Specifications

Engine  ZONSEN GB750 Blade 2 x 8 in Blades; 2 x 6 in Anvil
Engine Type Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling Blade Material A8 （5Cr8MoVSi）
Displacement 750 cc; 25 HP Blades Type Double Edge Blade
Rated Power 15.5 kw / 3600 RPM Flywheel System Open Top Flywheel 26 in x 1 in Twin
Max. Net Torque 45 N·m / 2800 RPM Discharge Chute 360 Degree Rotating
Fuel Capacity 3.17 gal Emergency Stop Stop Bar
Recommended Oil SAE 10W-30 Classification SE or Higher Towing Length Tow Bar With 2 in Coupler

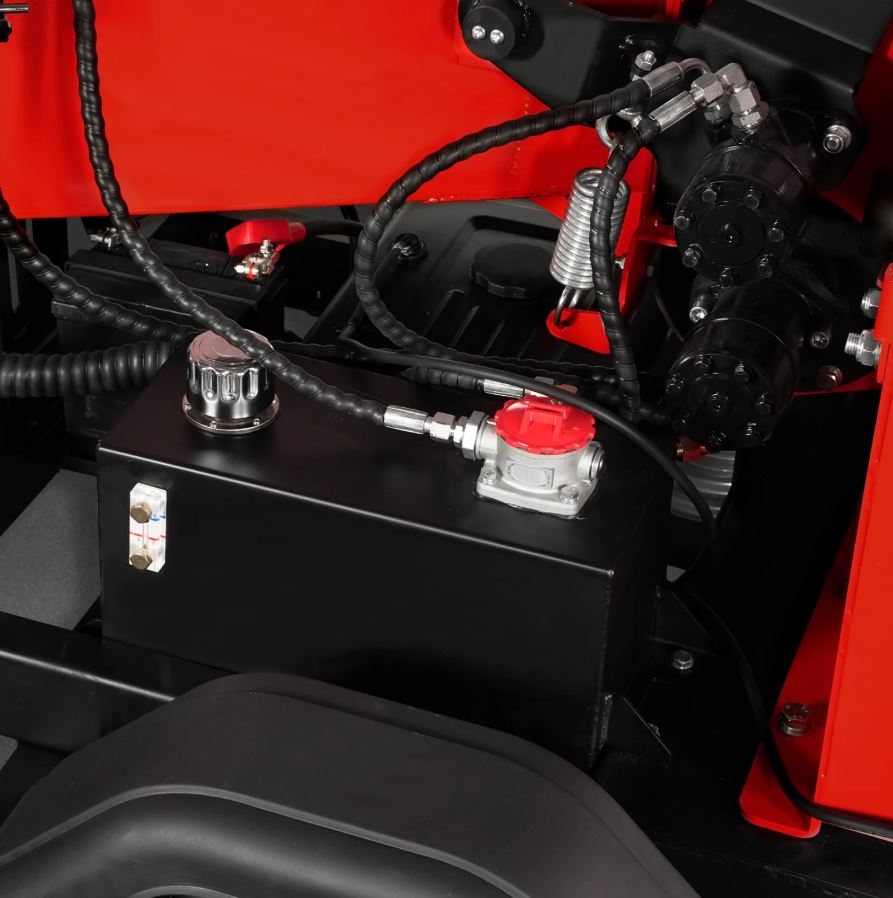

Hydraulic Tank 6.87 gal Wheel 5.3-12 Tubeless
Starting Electric Starting Wheelbase 52.5 in
Battery 36Ah 12V Lead-Acid Battery Axle Damping Torsion Axle
Ignition System CDI Max. Speed 50 mph
Governor System Mechanical Centrifugal Type Chassis Channel Steel Welded Frame
Belt 2 x V-Belts Package Method Iron Fram With Black Film
Belts Material Kevlar Weight (N.W./G.W.) 1389 / 1587 lbs
Clutch Centrifugal Clutch Product Size (L*W*H) 137 x 55 x 90 in
Cutting Method Disc Packing Size (L*W*H) 87 x 46 x 51 in

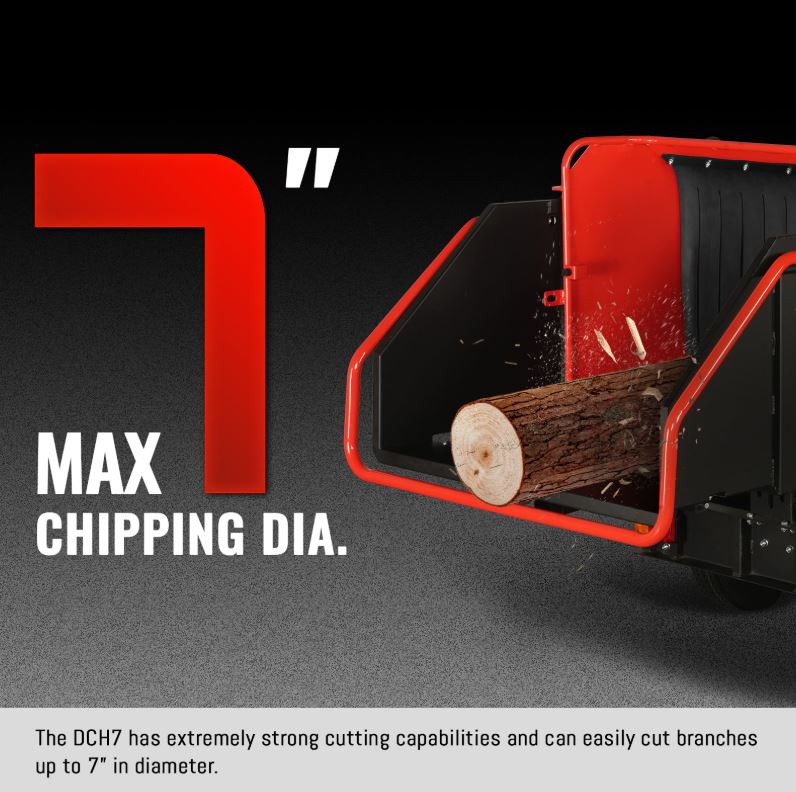

Max. Chipping Dia. 7 in Machine Warranty 2 Years
Feed Roller 7.5 in x 6.5 in Engine Warranty 2 Years
